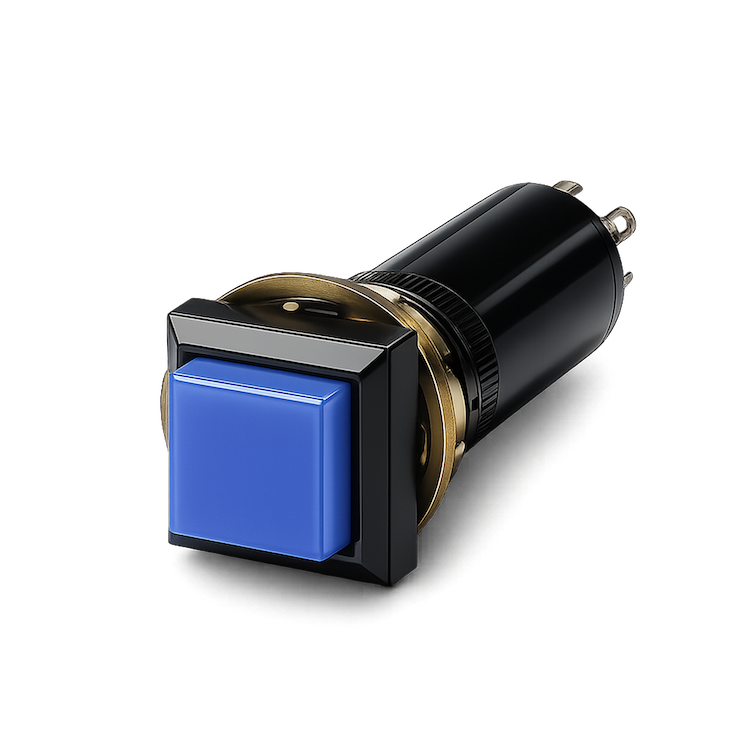

Series 20
Front Panel Mount, Plastic Case Pushbutton Switch Illuminated and NonIlluminated Models
DESCRIPTION
Electro-Mech’s Series 20 switches are provided in 1/2", 5/8", and 3/4" square or round, and 1/2" x 3/4" display configurations, all mounting in the same size 5/8" diameter round mounting hole from the front of the panel. These low profile units are available in any switching mode with independent lamp circuitry from SPST to DPDT. The all plastic, unitized housing assures ease in handling (no adapters, clamps, or brackets). Just drop the switch in the round hole and secure with a hex nut or round slotted nut from behind the panel. Series 20 switches have the same internal parts as the all metal Series 6100, including positive action, reliable circuitry and proven low bounce characteristics made possible by our unique design concept of silver slide bar action.
Configuration
Plastic unitized housing
Circuitry SPST – 2PDT
Mounts in 5/8″ dia. mounting hole
Low profile on front panel
Replaceable legend lens caps
LED or incandescent back lighting
Specifications
30 VOLTS DC OR 125 VOLTS AC; 2.0A RESISTIVE, 0.5A INDUCTIVE
0.8 OZ. (23 G) (APPROX.)
2 LBS.+ 1 LB. (908G + 454G)
0.125 NOMINAL (3.2MM)
100,000 MINIMUM
SILVER PLATED (GOLD PLATING OPTIONAL)
STANDARD EMC SOLDER LUG. ACCEPTS TWO 20 AWG WIRES. ‘PC’ PINS AVAIL.
ACCOMMODATES EMC SERIES 20 LENS.
ACCOMMODATES ONE T 13/4 (5MM) MIDGET FLANGE BASE LAMP OR LED. LAMP CIRCUIT IS INDEPENDENT.
