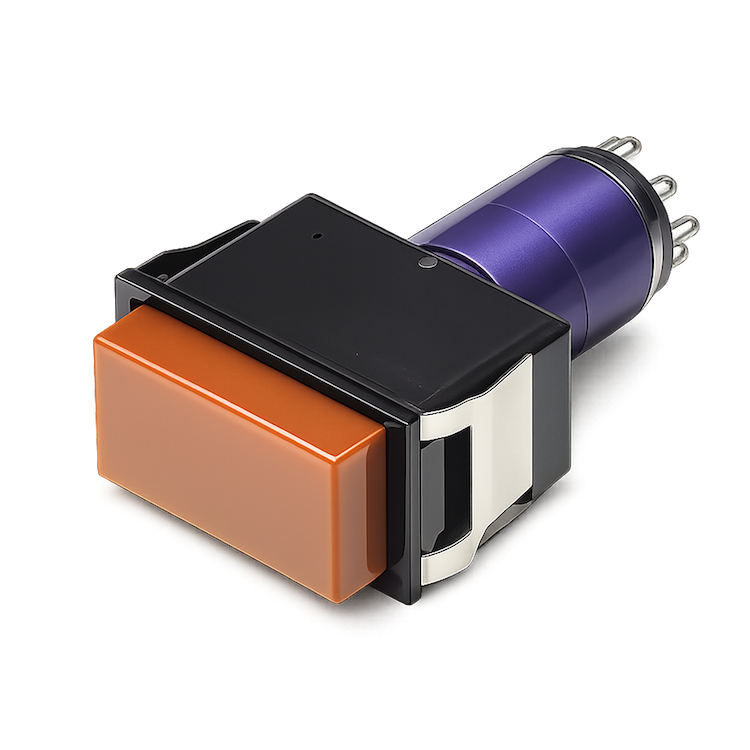

Series 2600
Sub Panel Mount | Pushbutton Switch | Illuminated and Non-Illuminated Models
DESCRIPTION
Electro-Mech Series 2600 switches provide substantial long life and reliability in a highly versatile design, serving as an industry standard since its inception. Standard models are available from 2PDT to 6PDT in 160 different configurations, including non-illuminated versions.
Configuration
Metal case switch
Circuitry SPST – 2PDT
Mounts to sub panel or front panel
Momentary or Alternate Action
“W” modification IAW Mil-PRF-22885 sealing requirements
LED or incandescent back lighting
Multi switch interlocking assemblies
Specifications
30 VOLTS DC OR 125 VOLTS AC; 2.0A RESISTIVE, 0.5A INDUCTIVE
0.8 OZ. (23 G) (APPROX.)
2 LBS.+ 1 LB. (908G + 454G)
0.187 NOMINAL (4.7MM)
100,000 MINIMUM
SILVER PLATED (GOLD PLATING OPTIONAL)
STANDARD EMC SOLDER LUG. ACCEPTS TWO 20 AWG WIRES.
ACCOMMODATES ANY STANDARD EMC LENS. SEE SINGLE LAMP LENSES.
ACCOMMODATES ONE T 1-3/4 (5MM) MIDGET FLANGE BASE LAMP OR LED. LAMP CIRCUIT IS INDEPENDENT.
