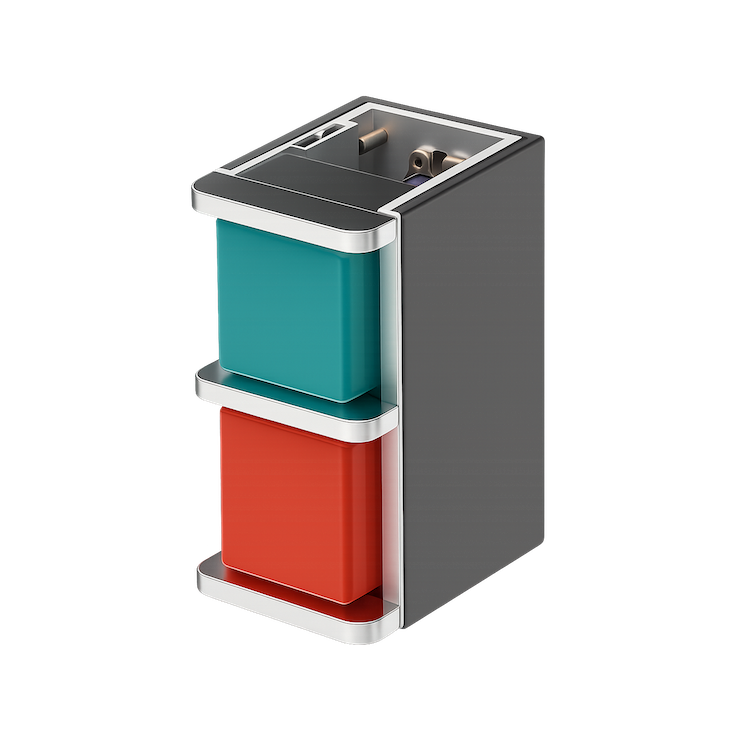

Series 500
Multi-Switch Interlocking Assembly Front Panel Mounting Chrome Plated Barriers Between Stations
DESCRIPTION
Electro-Mech Series 500 offers a line of front panel mounting assemblies which utilize Series 2100 or Series 2600 pushbutton switches. These assemblies feature long lasting chrome barriers that border each individual lens and adds a clean and durable appearance to the front panel. Assemblies are available in four styles with each being able to utilize all ten types of tracking action and switching sequences, as listed with the Series 400 specifications. The chart below shows the dimensional configurations for three of the four different styles (single row or double row, 0.87″ or 1.00″ centers) and can be custom modified to meet specific requirements. Mounting: Series 500 assemblies push in from the front of the panel and attach with a mating U shaped mounting bracket behind the panel. Mounting bracket is attached to the switch assembly with screws as provided behind the panel.
Configuration
Metal case switch
Circuitry SPST – 2PDT
Mounts to sub panel or front panel
Momentary or Alternate Action
“W” modification IAW Mil-PRF-22885 sealing requirements
LED or incandescent back lighting
Multi switch interlocking assemblies
Specifications
30 VOLTS DC OR 125 VOLTS AC; 2.0A RESISTIVE, 0.5A INDUCTIVE
VARIES
2 LBS. + 1 LB. (908G + 454G)
0.187 NOMINAL (4.7MM)
100,000 MINIMUM
SILVER PLATED (GOLD PLATING OPTIONAL)
STANDARD EMC SOLDER LUG. ACCEPTS TWO 20 AWG WIRES. PC PIN TERMINALS ALSO AVAILABLE.
ACCOMMODATES ANY STANDARD EMC LENS. SEE SINGLE LAMP LENSES.
ACCOMMODATES ONE T 1-3/4 (5MM) MIDGET FLANGE BASE LAMP OR LED
