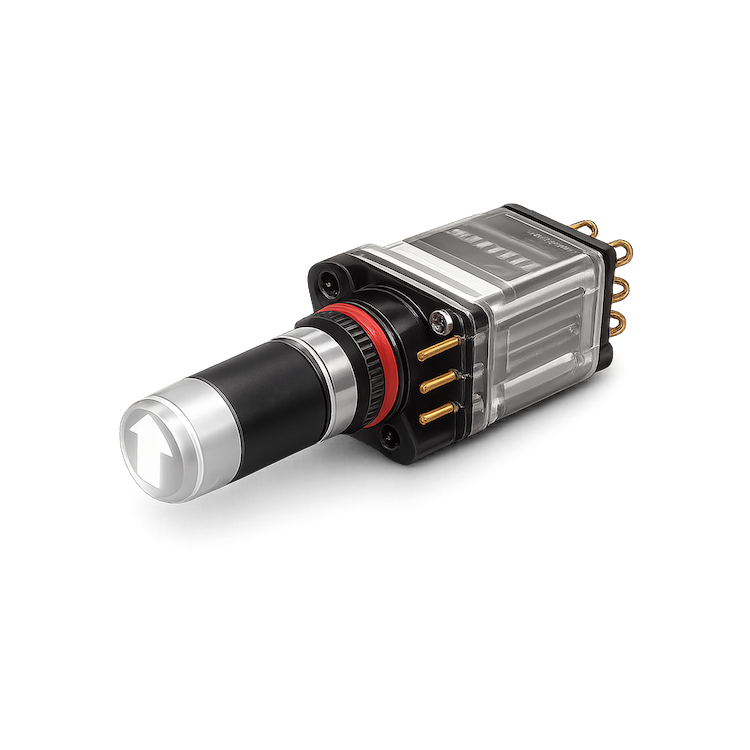

SW44109
Hall Effect Potentiometer Switch
DESCRIPTION
The hall-effect switch + potentiometer assembly offers the advantages of both digital and rotary control in a compact size for audio volume preset in avionics cockpit applications. Illumination of the edgelit knob is via an edgelit panel. Front facing PC pins allow unit to be mounted from behind the panel.
Configuration
Metal case switch
Circuitry SPST – 2PDT
Mounts to sub panel or front panel
Momentary or Alternate Action
“W” modification IAW Mil-PRF-22885 sealing requirements
LED or incandescent back lighting
Multi switch interlocking assemblies
Specifications
IC supply voltage: 3.8vdc minimum; IC supply current: 5mA maximum
1.0 ounce maximum
35 + 5 ounces
100,000 MINIMUM
BLACK ANODIZED
MOUNTING EARS
Edgelit knob is supplied with this assembly.
